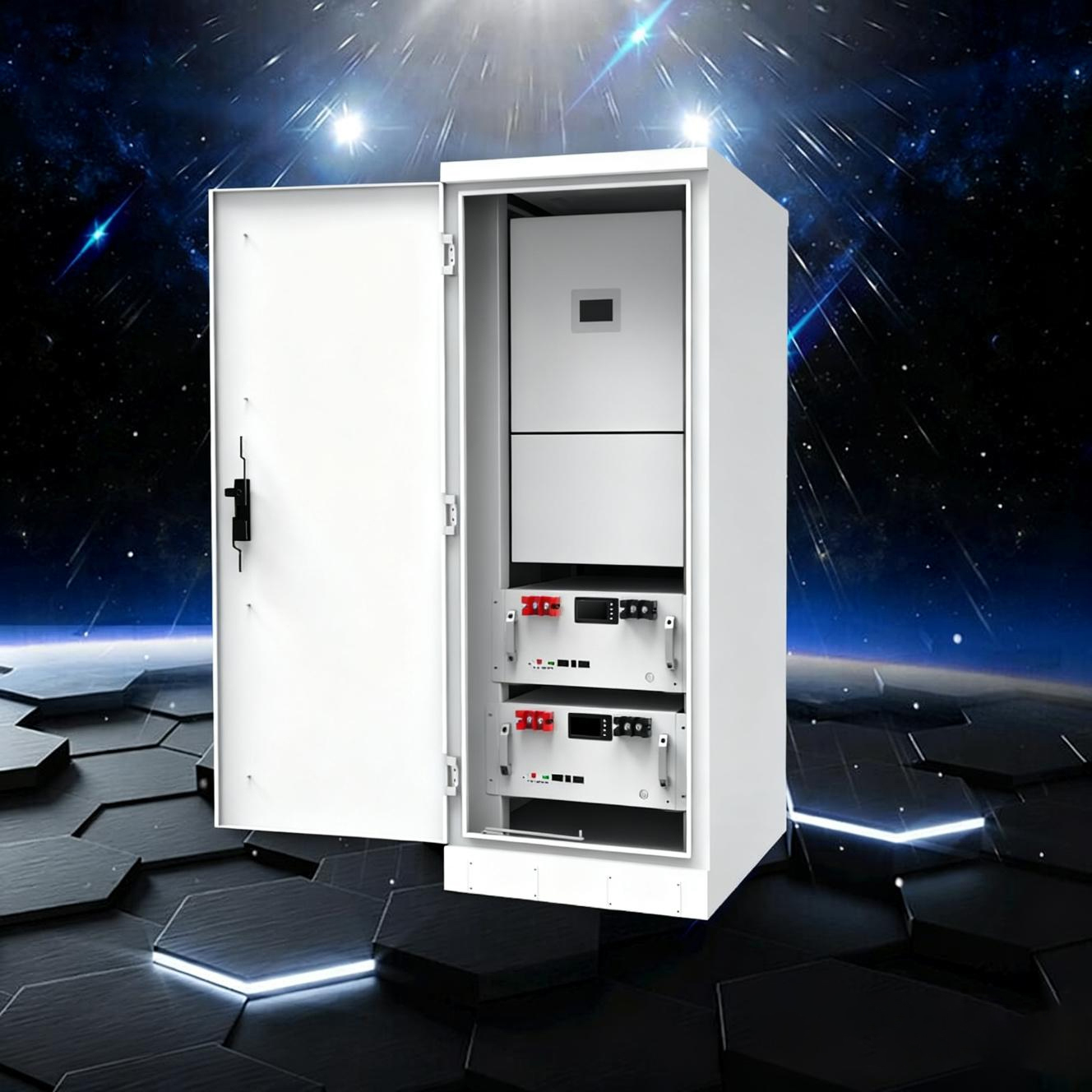

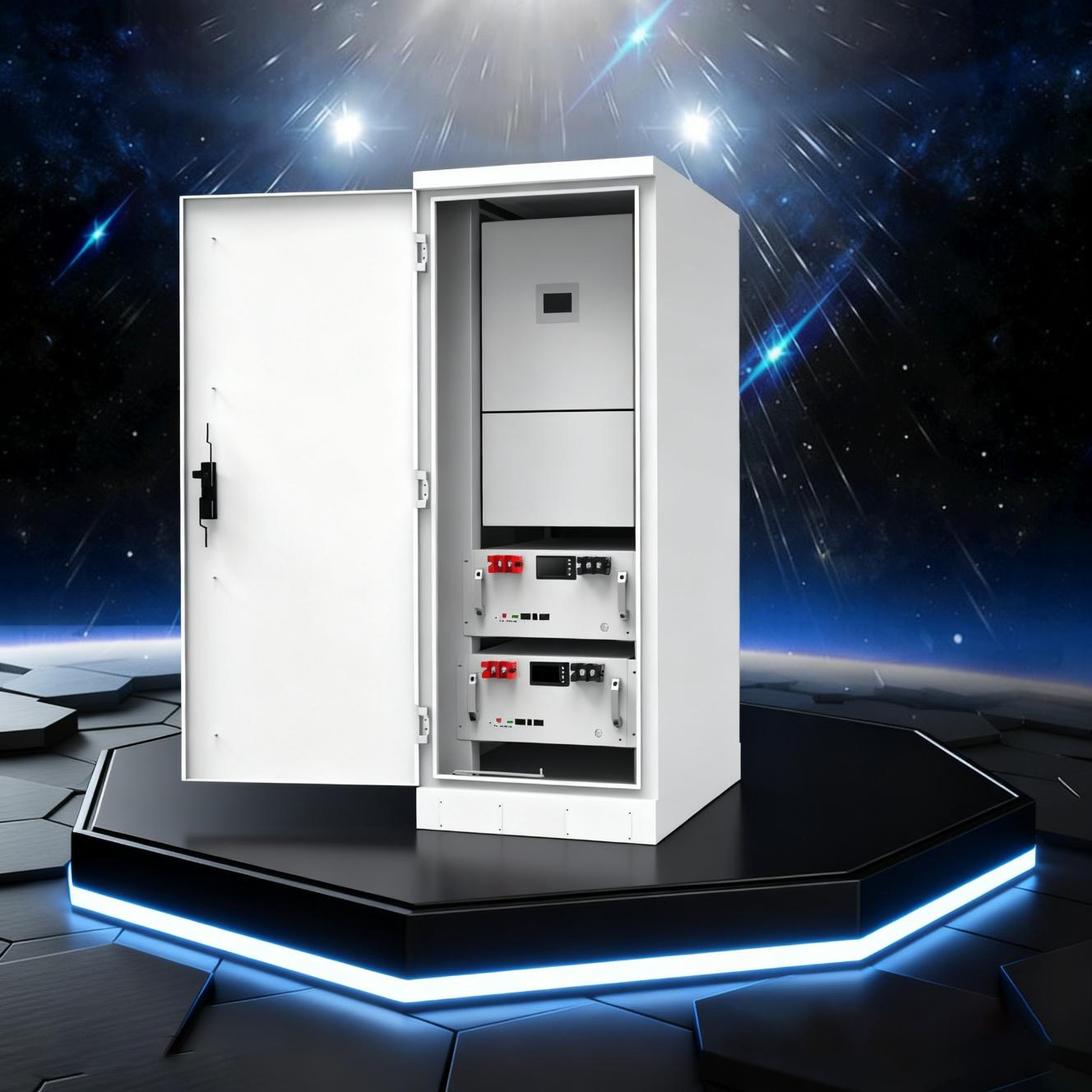

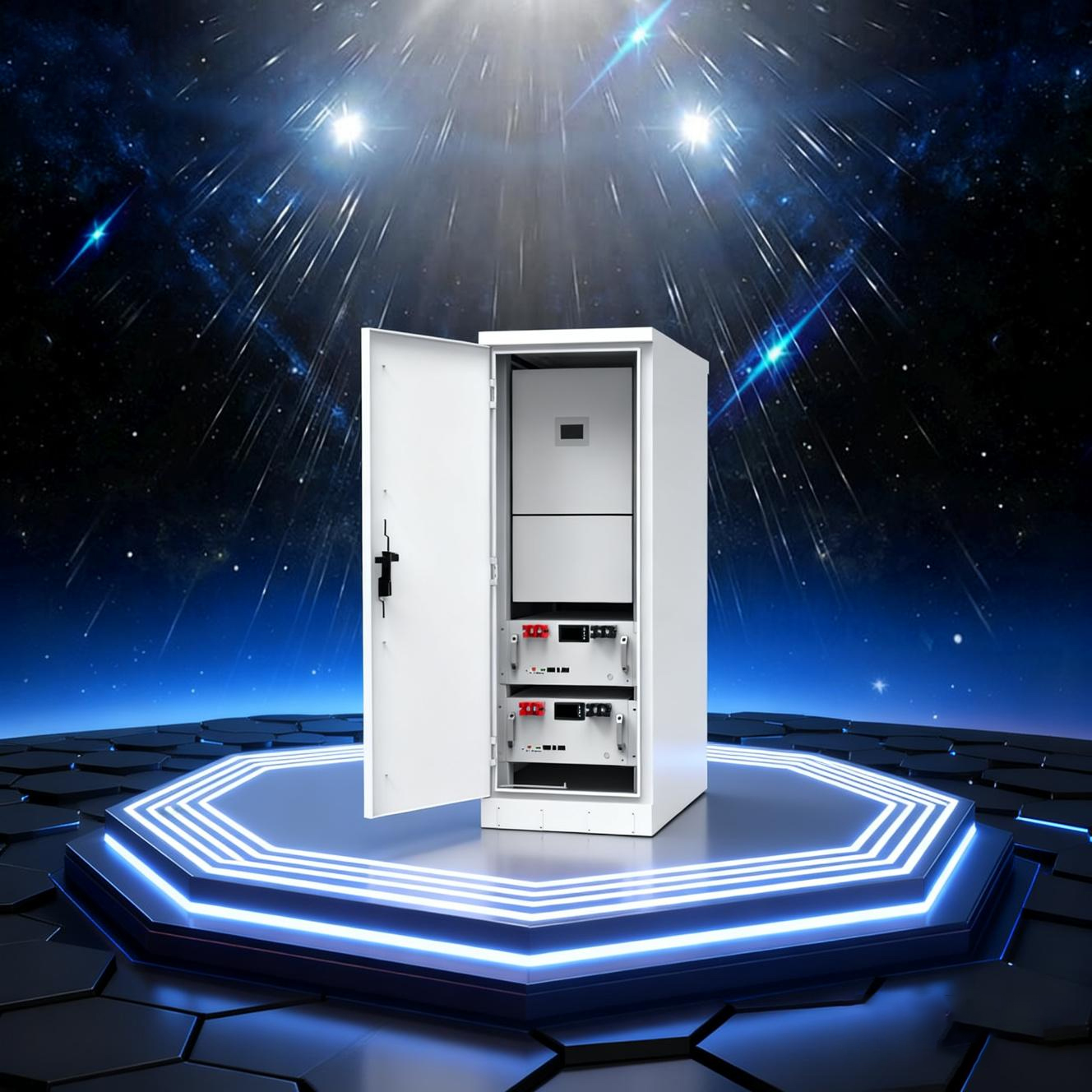

Industrial and commercial Power Storage

SL -32KWH

Battery pack model51.2V314AhNominal voltage51.2VRated capacity314AhOperating cur

Product Overview

Battery pack model	51.2V314Ah
Nominal voltage	51.2V
Rated capacity	314Ah
Operating current	200Ah
Charging voltage	58.4V
Standard charging current	100A
Maximum continuous discharge current	200A
Dimensions	482222766.5mm
Operating temperature	Charging 0℃~+50℃ output -20℃~+50℃
Weight	116±0.3Kg
Operating humidity	0%~95% RH
Storage temperature	0~35℃

Technical Specifications for Battery System Enclosure Structure

DC-side Parameters
Battery pack model	Lifepho4	Operating Voltage Range	40V-58.4V
Configuration	1P16S*2	Cooling Method	Natural Cooling
Rated Capacity	628Ah	Cycle Life	6000 time
Rated Energy	32.15Wh
Rated Voltage	51.2V
Rated Power	12kW	Rated Charge/Discharge C-rate	0.5P
AC-side Parameters
Rated AC Power	12kW
Rated Voltage	380V/400V
Grid Frequency	50Hz/60Hz±2.5Hz
Maximum Output Current	30A
Power Factor	0.99
System Parameters
Operating Environment	-20℃～ 50℃（Reduced usage at over 45 ℃）
Noise	≤75dB
Dimensions	63010491670mm
Weight	About 450Kg
Ingress Protection (IP) Rating	IP54
Permissible Relative Humidity	0-95%（no condensation）
Permissible Altitude	≤2000m（Reduce the rating above 2000m）
Communication Interface	CAN/RS485/RS232
System Operation Mode	Peak Shaving and Valley Filling, Demand Control, Economic Operation Mode, Reactive Power Regulation
